Ecoply® Barrier

The Ecoply® Barrier System provides a weather tight and rigid air barrier for drained and vented cavity systems outside the building frame. This effectively replaces traditional building wrap in the cavity, while providing structural bracing and forming a strong secondary line of defence against moisture penetration into the building envelope.

Visit the Ecoply Barrier website

Request a Ecoply Barrier Product Sample Here.

Features & Benefits

  • Temporary weather protection to the building envelope prior to cladding installation
  • Fast close-in allows for earlier interior finishing
  • Provides structural bracing when installed as per bracing specifications
  • The panels can be exposed for a maximum of 180 days during the construction cycle. The sealing tapes can be exposed for a maximum of 180 days during the construction cycle. This means there are no hold-ups while the cladding has to be installed, e.g. brick layers etc
  • Manufactured from sustainably-grown NZ plantation pine
  • Sheet dimensions: 2440/2745 × 1200 mm
  • H3.2 CCA treated
  • Low formaldehyde emission (E0)
  • Low volatile organic compound (VOC's) surface coating
  • FSC® certified (FSC-C012019) upon request

Compliance

  • The Ecoply Barrier System meets the NZ Building Code requirements for rigid underlays as outlined in Section 9.1.4; the performance requirements of Table 23 of E2/AS1; and has been tested for wind speed exceeding Extra High wind zone as defined in NZS 3604. Testing has been completed to provide solutions for buildings outside scope of NZS 3604; contact CHH Ply direct for further information
  • BRANZ appraised for use as a rigid sheathing and temporary weather-protecting sheathing on timber-framed buildings
  • Independently certified as complaint with AS/NZS 2269 - Plywood Structural
  • H3.2 CCA treated in accordance with AS/NZS 1604.3

Range

Brochure

Ecoply Barrier Specification and Installation Guide September 2020

Ecoply® Barrier is a weathertight, plywood-based, rigid air barrier solution designed to cope with the wet weather and high winds that batter New Zealand homes, businesses and public spaces.

Ecoply Barrier for Steel Specification and Installation Guide October 2019

Ecoply® Barrier for Steel is a weathertight, plywood-based, rigid air barrier solution designed to cope with the wet weather and high winds that batter New Zealand homes, businesses and public spaces..

Ecoply Specification and Installation Guide September 2015

Ecoply is New Zealand's leading brand of structural plywood. Information in this guide relates to Ecoply and Shadowclad structural properties and specifications for common structural plywood applications.

Certification

Ecoply Barrier for Steel: BRANZ Appraisal No. 1017

Ecoply Barrier for Steel: BRANZ Appraisal No. 1017

CHH Ply - 2021 EWPAA Product Certification Scheme Certificate

2021 EWPAA Product Certification Scheme Certificate

Ecoply Barrier: BRANZ Appraisal No. 827

Ecoply Barrier: BRANZ Appraisal No. 827.

Technical Note

Ecoply Bracing Patch

Ecoply bracing patch, refer to Inserting Ecoply Bracing Values into GIB EzyBrace Technical Note.

Inserting Ecoply Bracing Values Into GIB EzyBrace Software

How to insert bracing values into GIB EzyBrace.

Cad

  PDF JPG

BAR015S

Ecoply Barrier for Steel System - Apron Flashing Junction

  PDF JPG

BAR009S

Ecoply Barrier for Steel System - Internal Corner

  PDF

BAR008S

Ecoply Barrier for Steel System - External Corner

  PDF

BAR007SC

Ecoply Barrier for Steel System - Face Sealed Horizontal Sheet Joints at Nog

  JPG

BAR007SB

Ecoply Barrier for Steel System - Face Sealed Horizontal Sheet Joints at Mid-floor

  PDF JPG

BAR007SA

Ecoply Barrier for Steel System - Horizontal Sheet Joints (Tape Z Flashing)

  DXF

BAR007S

Ecoply Barrier for Steel System - Horizontal Sheet Joints (PVC Z Flashing)

  PDF JPG

BAR006S

Ecoply Barrier for Steel System - Vertical Sheet Joints

  PDF JPG

BAR005S

Ecoply Barrier for Steel System - Brick Rebate Overhang Clearances

BAR005A

Ecoply Barrier for Steel System - Overhang Clearances for Concrete Slab or Masonry

Figure 1G

EPBS Bracing Panel Installation

Figure 1F

Bracing Panel Installation at Lintel

Figure 1E

Bracing Panel Installation - Long

Figure 1D

Bracing Panel Installation

Figure 1C

Framing/HandiBrac Installation

  PDF JPG

BAR014

Window Penetration Frame Sealing Tape Installation with Head Flashing

  PDF JPG

BAR013

Window Penetration Frame Sealing Tape Installation

  PDF JPG

BAR012

The Ecoply Barrier System - Wall Opening

  PDF JPG

BAR011

The Ecoply Barrier System - Penetration and Services

  PDF JPG

BAR010

The Ecoply Barrier System - Corner External to Horiztonal Joint

BAR009

The Ecoply Barrier System - Internal Corner

BAR008

The Ecoply Barrier System - External Corner

BAR007A

The Ecoply Barrier System - Horizontal Sheet Joints (Barrier Tape)

BAR007

The Ecoply Barrier System - Horizontal Joint

BAR006

The Ecoply Barrier System - vertical sheet joints

BAR005

The Ecoply Barrier System - overhangs and joint clearances

BAR003

The Ecoply Barrier System with Shadowclad®

BAR002

The Ecoply Barrier System with weatherboard

Product Technical Statement

Ecoply® Barrier Plywood July 2015

Product Techncial Statement for Ecoply Barrier

Case Studies

Kaikoura Island Prefabricated Lodge

The collaboration between Architecture+Women-NZ and Strachan Group Architects (SGA) has been a successful partnership between timber products and great prefabricated design.

The Architect, The Builder and The Homeowner - Ecoply Barrier

Zane Raphael of Smith & Sons, renovation and extension specialists, moved his family into a 1960s Auckland home with plans to renovate and create a safe, healthy, dream home for his family.

Vital Support Where It Counts

Vision West Community Housing provides short term and long term supported rental housing in West Auckland. Their aim is to provide safe, healthy, affordable, quality rental housing for low-income families. Ecoply Barrier was the obvious solution for this project as it could benefit the complete build with its bracing properties, speed of installation and weather-tightness.

Wrapped Up For Winter

Ecoply Barrier was used as protection against the elements down south.

Deep South Higher Education

A generous outdoor plaza is at the heart of a significant addition to the Otago University campus.

Braced for the Elements

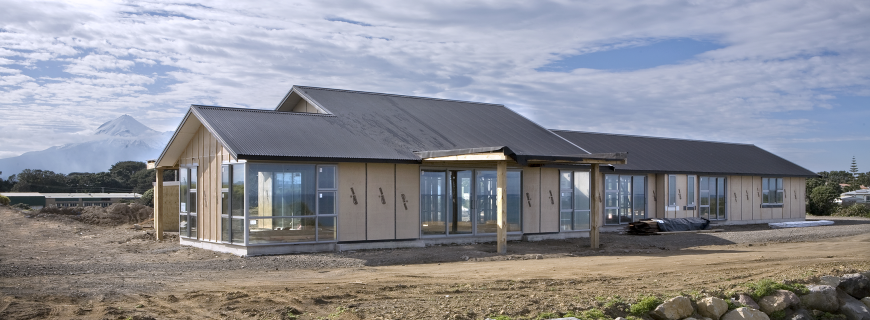

A new family home, situated by the ocean, in the extra high wind zone of the Taranaki region required an upgrade from a standard rigid air barrier board to Ecoply Barrier.

Braced For All Levels

A three-storey home situated on the slopes of Titirangi's Wood Bay utilised the benefits of Ecoply Barrier for quick enclosure along with the added bracing of a rigid air barrier system.

Brace for the Future

Ecoply Barrier was used in place of building wrap to create a fully drained and vented rigid air barrier. With the growing awareness around leaky building a requirement for the Kaplan International College new residence bulding in Christchurch was to provide not only a building which was cost effective but one which had increased protection against leaks into the building envelope, especially given the building is located in a high wind zone area.

Sds

Ecoply Barrier SDS

Chemwatch Ecoply Barrier

Ecoply SDS H3.2 CCA Treated Plywood

Chemwatch H3.2 CCA treated pine plywood Safety Data Sheet.
